BYD T5 Pure Electric Refrigerated Reefer Box Truck
Send Inquiry
Chat Now
Product Details

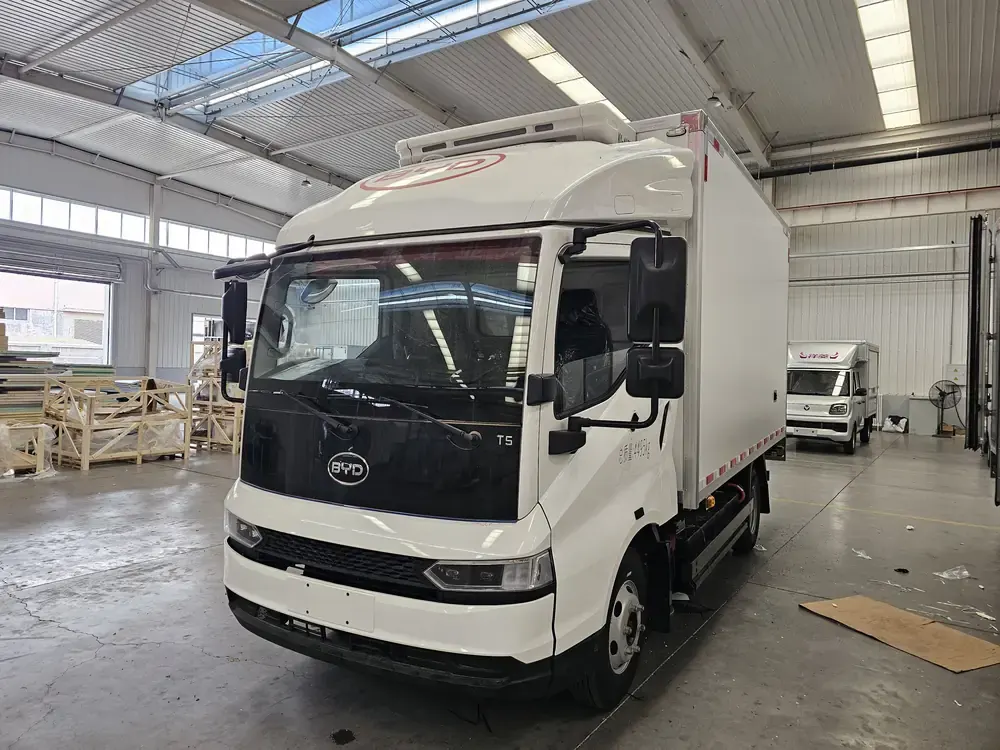

The BYD T5 Pure Electric Refrigerated Box Truck is an industry-leading logistics vehicle that integrates zero-emission electric powertrain efficiency with precise, deep-freezing thermal management for urban cold-chain distribution.
Vehicle Classification: 4x2 Pure Electric Light-Duty Refrigerated Truck
Primary Refrigeration Assembly: Outfitted with the advanced Kaixue KX-460TW all-electric inverter refrigeration system.
Core Application Field: Transporting fresh produce, frozen foods, medical vaccines, and supermarket dairy freight.
Chassis Architecture: High-voltage commercial EV platform powered by the proprietary BYD Blade Battery system.
Ready to enhance your transport efficiency?
Advantages of BYD T5 Pure Electric Refrigerated Box Truck
The Truck Features Ultra-Safe BYD Blade Battery Power: This advanced BYD T5 pure electric refrigerated box truck carries a specialized lithium iron phosphate (LFP) battery packs network, providing a long urban driving range and rapid DC fast-charging capacity.
The Vehicle Utilizes a High-Efficiency Integrated Electric Drive Axle: This electric reefer truck delivers instant torque response, exceptionally smooth gear acceleration, and lower mechanical energy losses compared to traditional diesel powertrain platforms.
The Refrigerated Truck Commands Superior Multi-Layer Insulation: The cargo box body is constructed from high-density polyurethane foam insulated between premium fiberglass sheets, ensuring high structural durability and excellent thermal protection.
The Cold-Chain Truck Achieves Precise Deep-Freezing Temperatures: Equipped with the Kaixue KX-460TW unit, this EV refrigerated truck comfortably pulls internal box climates down to -20℃ while operating effortlessly under harsh 30℃ external ambient temperatures.
The Electric Truck Lowers Long-Term Fleet Operational Overhead: By eliminating conventional internal combustion engine parts like oil filters, drive belts, and diesel fuel costs, this commercial vehicle maximizes long-term ROI for logistics companies.
【Technical Specifications】
| Parameter | Detailed Specifications (Subject: Refrigerated Truck) |
|---|---|
| Model Name | BYD T5 Pure Electric Refrigerated Box Truck |
| Drive Configuration | 4x2 Single Rear Axle Electric Drive Layout |
| Gross Vehicle Weight (GVW) | 4,500 kg (Standard Light-Duty Commercial Truck Class) |
| Integrated Cooling Unit | Kaixue KX-460TW All-Electric Refrigeration Unit |
| Cargo Box Volume Capacity | 14 m³ – 18 m³ (Ideal for 14-18 CBM cold chain transport) |
| Minimum Freezer Climate | Down to -20℃ (Deep Freezing Capacity) |
| Cooling Capacity ($0^\circ\text{C}$ / $-20^\circ\text{C}$) | 4,800 Watts / 2,580 Watts (High-efficiency output) |
| Evaporator Box Airflow | 1,830 m³/h High-Velocity Air Circulation Network |
| High-Voltage Power Input | DC 280V – 750V (Cooling unit is powered directly by the truck's chassis battery) |
| Defrost Component System | Automatic Hot Gas Defrost + Manual Forced Defrost |
| Total System Energy Pull | Rated Power: 3.2 KW / Max Power Pmaxx < 5.5 KW |
Ready to enhance your transport efficiency?
Application Scenarios
The BYD T5 pure electric refrigerated box truck is exceptionally effective for urban fresh food logistics and supermarket distribution, delivering fresh vegetables, dairy shipments, and frozen meat products from rural agricultural centers directly to city retail stores without violating strict zero-emission municipal zones. It is also a premier choice for pharmaceutical, medicine, and vaccine cold-chain transport, where the truck's highly precise temperature controls and quiet electric operation insulate sensitive medical compounds from external thermal decay. Furthermore, the specialized dual-voltage technical specifications and advanced CAN Bus smart connectivity make this versatile EV reefer truck highly reliable for inter-warehouse logistics and e-commerce catering delivery, moving bulk perishable freight across demanding highway networks with maximum environmental and energy efficiency.
【Why Choose Us】
Purchasing our BYD T5 pure electric refrigerated box truck guarantees you receive a fully integrated, factory-calibrated cold-chain machinery solution. As a premier international commercial vehicle wholesaler and exporter, we offer highly competitive factory-direct wholesale pricing, complete assistance for EV import customs documentation, a comprehensive structural warranty, and a dependable supply chain for original electric accessories and refrigeration components to ensure your fleet maintains maximum operational uptime.
