4 Axle 53ft Flatbed Semi Trailer
Send Inquiry
Chat Now
Product Details
The 4 Axle 53ft Flatbed Semi Trailer delivers an industry-leading combination of extended cargo platform space and structural durability for high-volume international container shipping.
Condition: 100% Brand New
Use: 20ft/40ft/43ft/53ft Container Logistics, Bulk Cargo, and Heavy Construction Material Hauling
Configuration: Premium Q345B Carbon Steel Main Beam + 4 x FUWA/BPW Axles + 12 x Heavy Duty Twist Locks
Delivery: Within 15-25 Working Days After Deposit
Ready to enhance your transport efficiency?
Advantages of 4 Axle 53ft Flatbed Semi Trailer
Oversized Intermodal Cargo Platform: Featuring an extended deck design, this 53ft flatbed trailer provides the maximum legal loading area required to haul oversized domestic containers or long structural building materials in a single trip.
Optimized Four-Axle Load Distribution: Engineered as a heavy-duty 4 axle flatbed trailer, it divides high-tonnage payloads evenly across the running gear, reducing point-pressure on regional highway systems and maximizing safety margins.
Military-Grade Structural Durability: The main longitudinal beams of this flatbed semi trailer are fabricated from high-tensile carbon steel using automatic double-sided submerged arc welding, protecting the chassis structure from sagging under concentrated weight.
Premium Heavy-Duty Twist Locks: Equipped with 12 sets of industrial-grade retractable container twist locks, the trailer easily switches between carrying one 50ft/53ft container, one 40ft container, or two 20ft units simultaneously.
Wear-Resistant and Reinforced Flooring: The cargo deck is lined with high-thickness checkered steel plates or durable hardwood composite flooring, ensuring maximum surface friction and traction across diverse application fields.

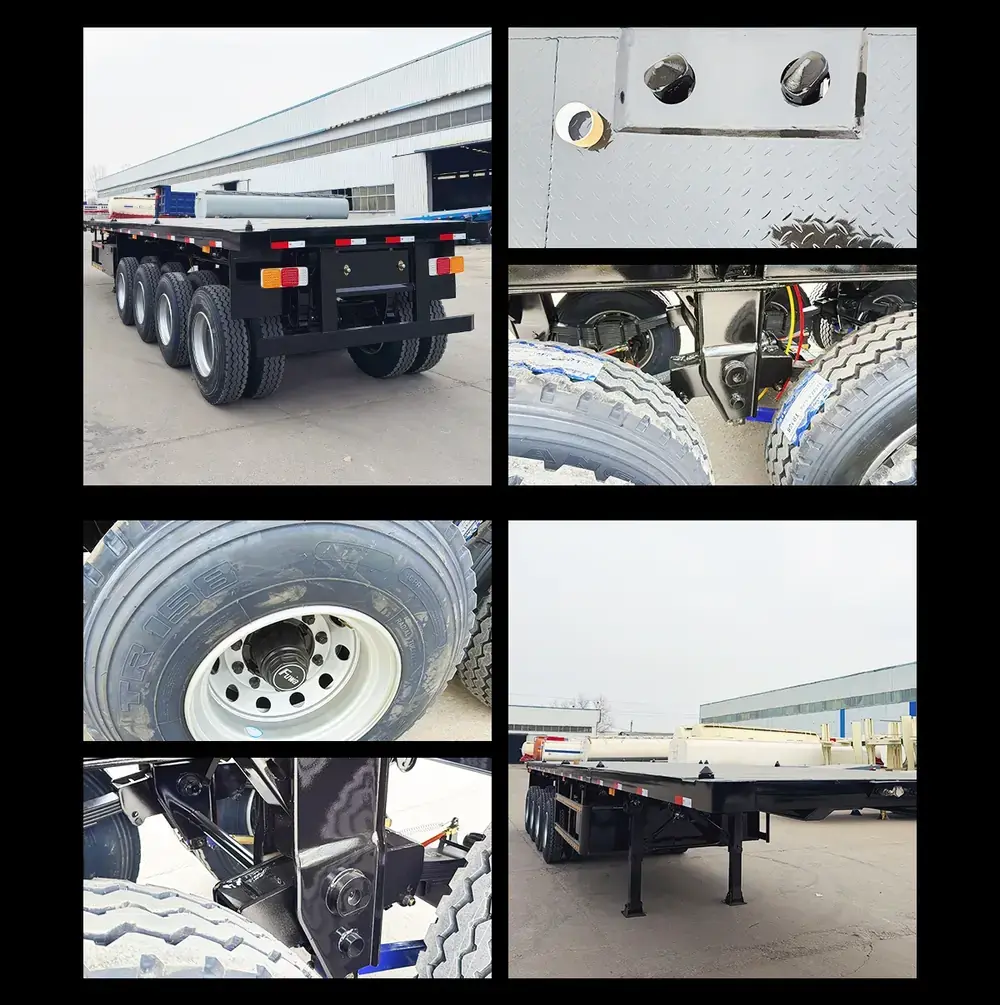

【Technical Specifications】
| Parameter | Detailed Specifications |
|---|---|
| Model Name | Heavy Duty 4 Axle 53ft Flatbed Semi Trailer |
| Loading Capacity Range | 60 Tons – 80 Tons (Customizable high-tonnage payload specifications) |
| Overall Dimensions | 16,150mm x 2,500mm x 1,550mm (Standard 53ft platform height) |
| Main Beam Material | Q345B High-Tensile Structural Carbon Steel (Upper 14mm / Lower 16mm) |
| Axle Specification | 4 Axles x 13-Ton / 16-Ton FUWA, BPW, or Chengda Brands (Front axle liftable optional) |
| Container Twist Locks | 12 Sets of Heavy Duty ISO Standard Retractable Twist Locks |
| King Pin Assembly | 2.0 Inch (50#) / 3.5 Inch (90#) JOST Brand Interchangeable Bolts |
| Tire Specification | 12R22.5 Tubeless Steel Radial Tires (16 Units + 1 Spare Tire Included) |
Ready to enhance your transport efficiency?
Application Scenarios

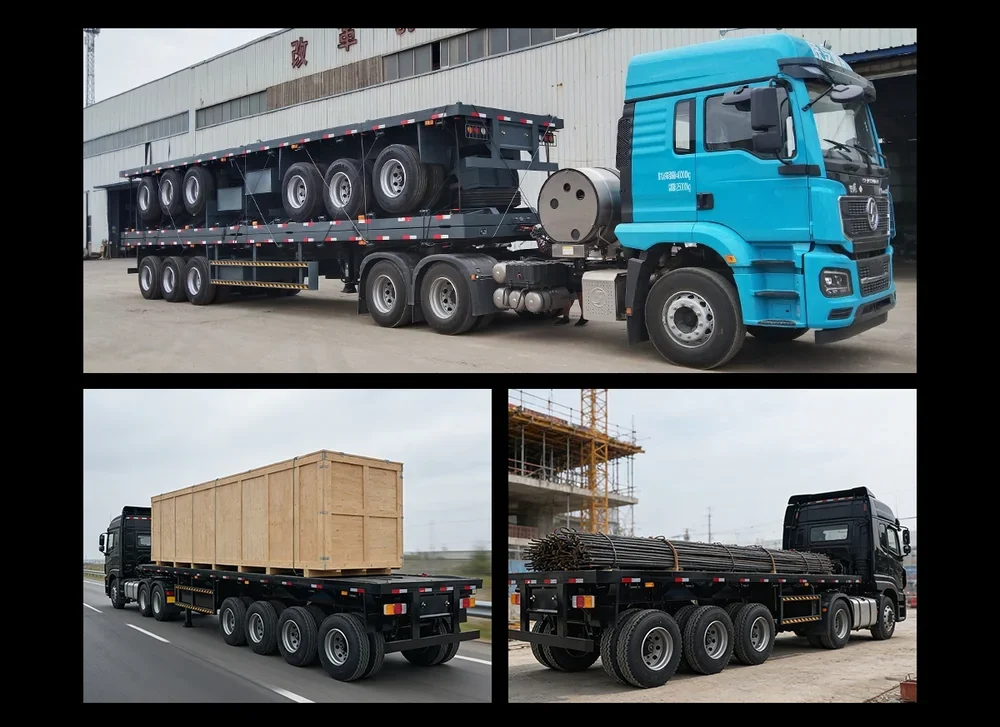

The 4 axle flatbed trailer is exceptionally effective for intermodal port logistics and long-distance cross-border transport, effortlessly hauling standardized international shipping containers directly from ocean berths to inland distribution hubs. It is also a premier choice in heavy infrastructure and manufacturing sectors, utilizing its expansive 53ft flatbed trailer deck to deliver steel rebars, precast concrete sections, industrial pipes, and oversized crated machinery to active job sites. Furthermore, the specialized technical specifications and robust multi-axle frame make this versatile flatbed semi trailer highly reliable for bulk agricultural distribution, rapidly transporting stacked palletized goods, wholesale timber, and packaged fertilizer products across demanding regional highway networks with maximum trip efficiency.
【Packaging and Shipping】

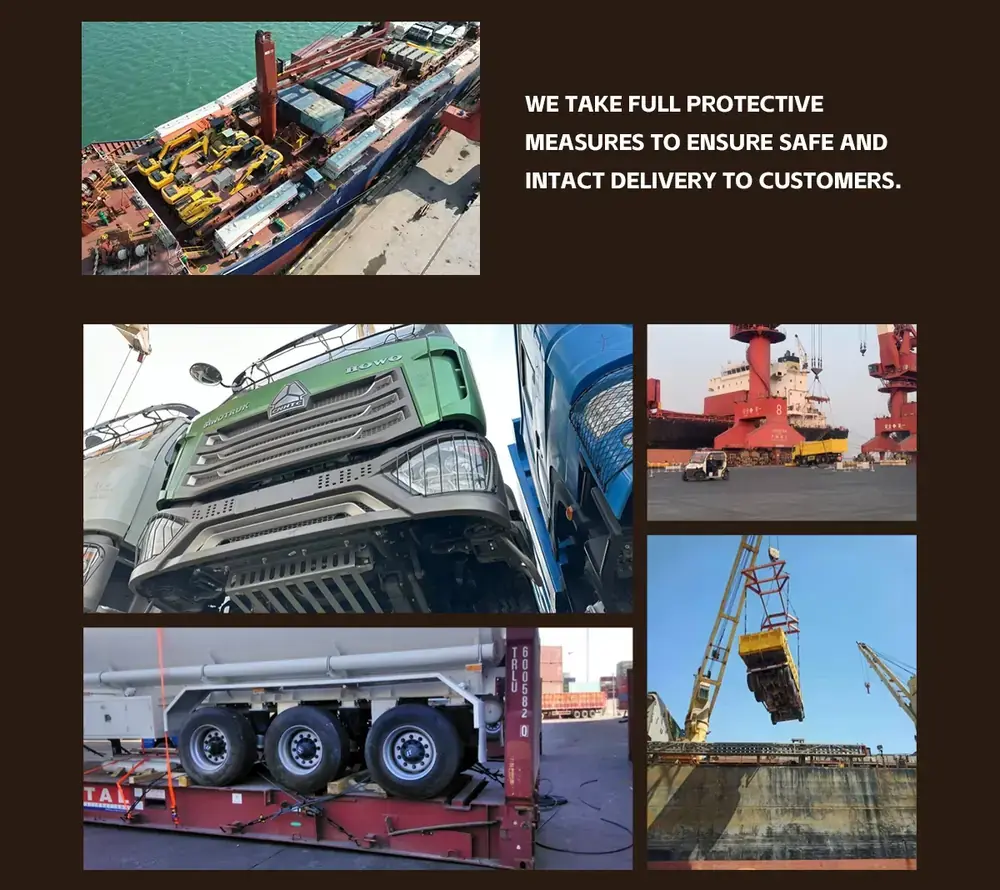

To protect the high-tensile structural steel finish and ISO twist locks of your 4 axle flatbed trailer, we provide professional, cost-effective packaging and shipping solutions. Every single unit undergoes a strict engineering diagnostic scan, multi-point weld inspection, and multi-layer anti-corrosive wax polishing treatment to insulate the chassis structure from marine humidity during sea transit. We utilize dependable Bulk Carrier or RORO (Roll-on/Roll-off) international shipping lines. For volume buyers and fleet wholesalers, we offer optimized "stacked delivery" configurations, safely stacking up to three flatbed trailers together to significantly minimize international ocean freight expenses.
Ready to enhance your transport efficiency?
【Customer Visits】

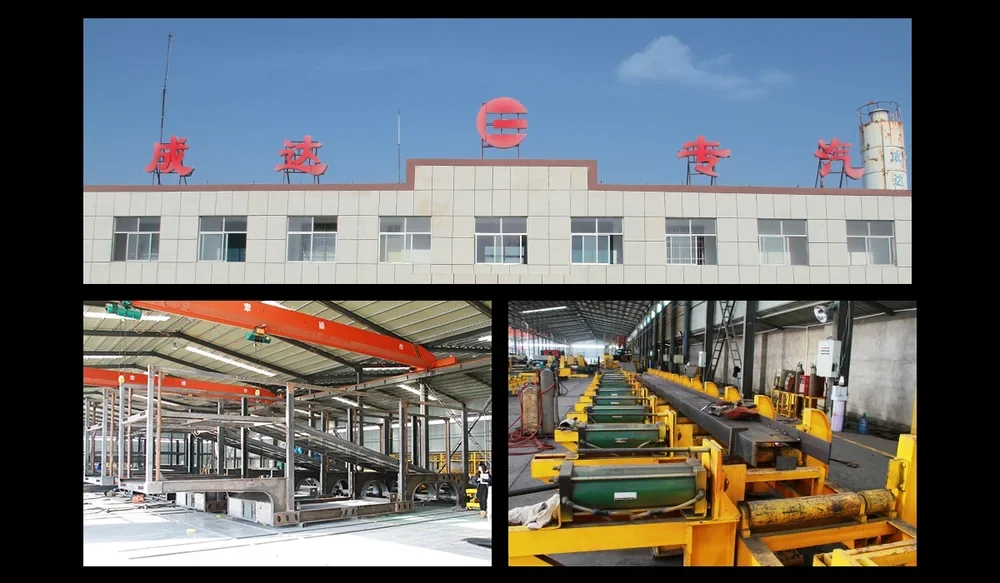

With nearly two decades of export expertise in the global heavy vehicle market, Chengda Group frequently hosts international customer visits at our state-of-the-art manufacturing plants and active inventory yards. Procurement managers and commercial fleet operators from Africa, Central Asia, and South America routinely visit our facilities to inspect our ready-to-ship flatbed semi trailer inventory, auditing our automated plasma cutting lines, precise double-sided welding quality, and multi-axle braking system tests firsthand.
【Why Choose Us】
Choosing our 53ft flatbed trailer ensures you are partnering with a premier heavy-duty vehicle manufacturer and strategic manufacturing supply partner. As specialists in commercial vehicle exports, we offer comprehensive "One-Shop Purchasing" featuring competitive factory-direct pricing, completely customizable deck dimensions, an extensive 12-month structural quality warranty, and a highly reliable supply chain for original accessories to maximize your fleet's operational uptime and long-term return on investment.
